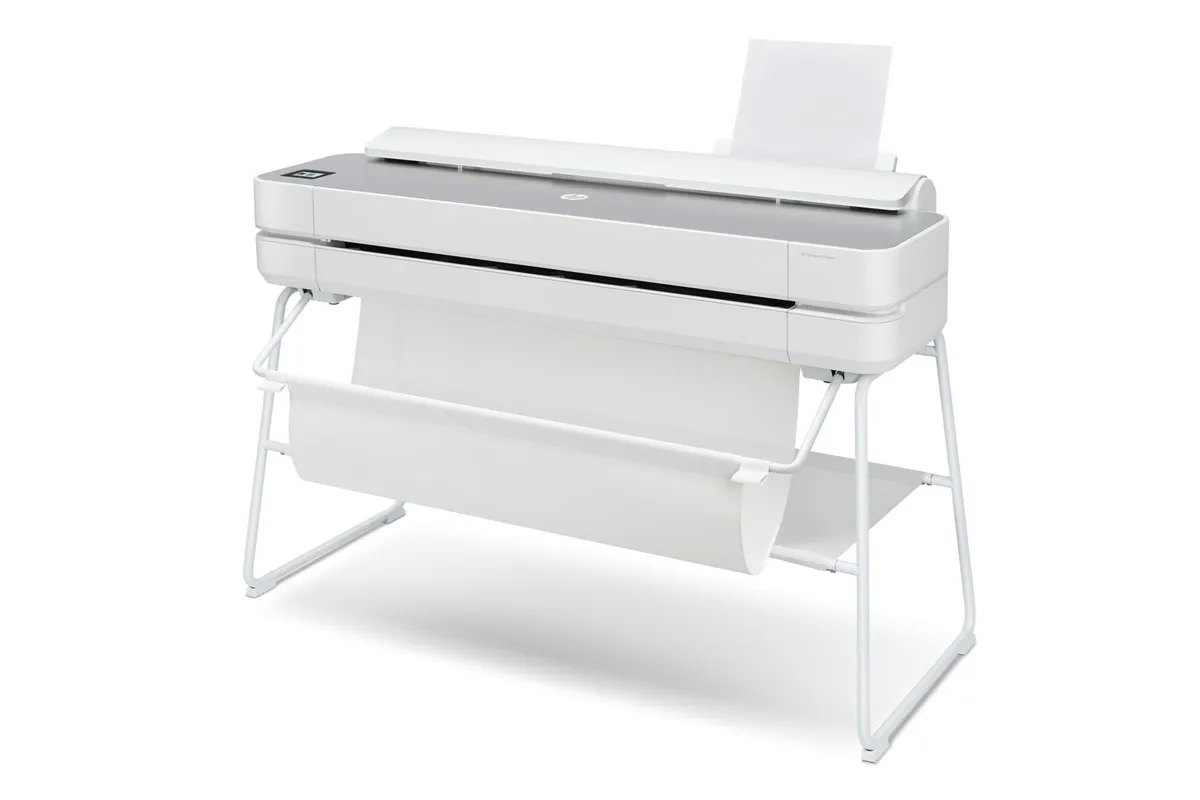

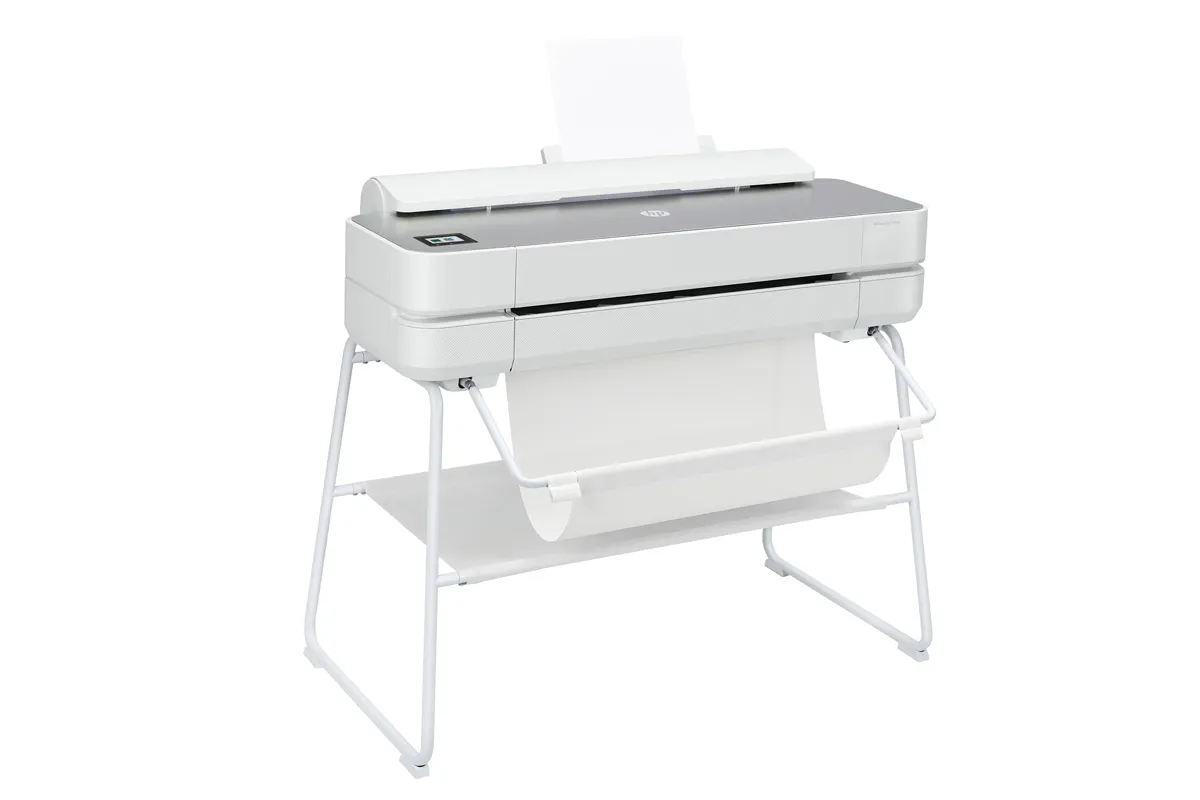

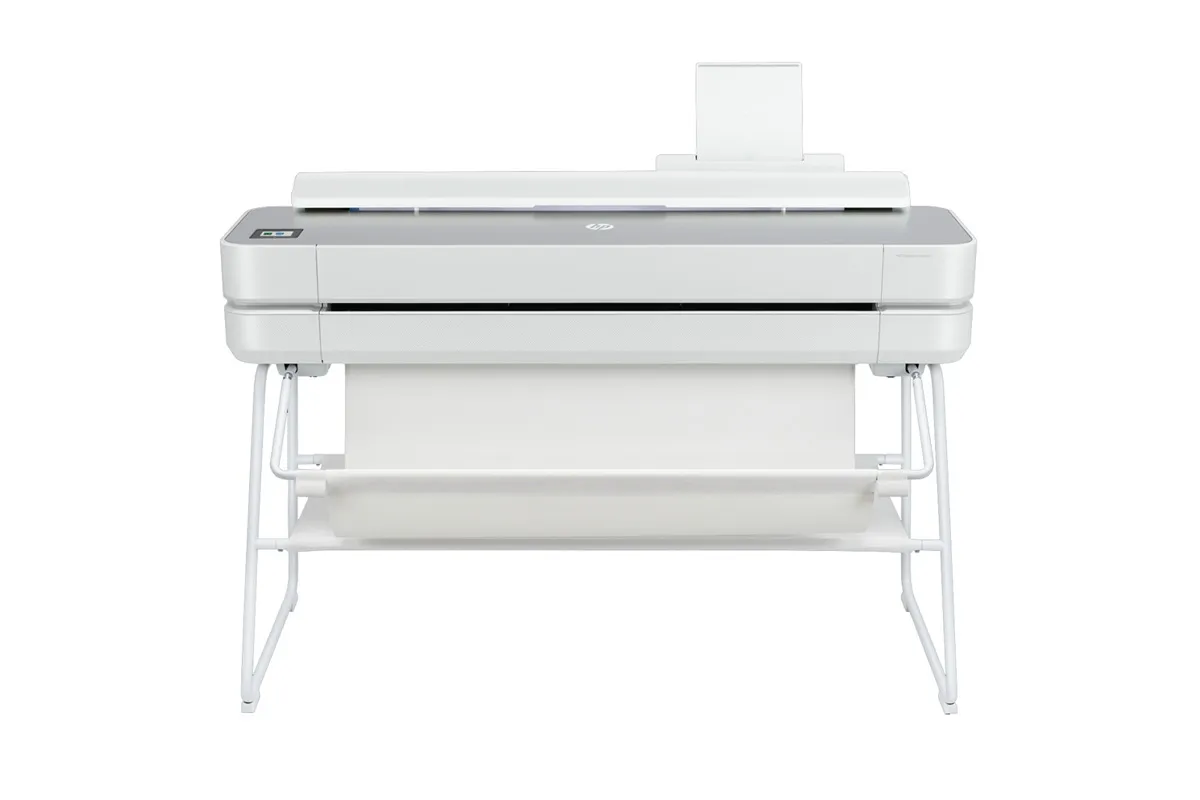

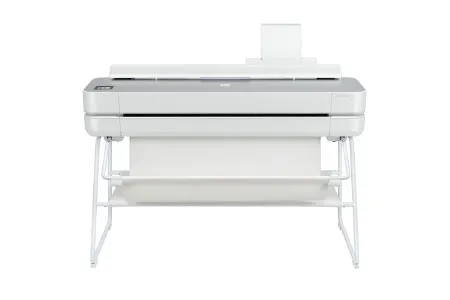

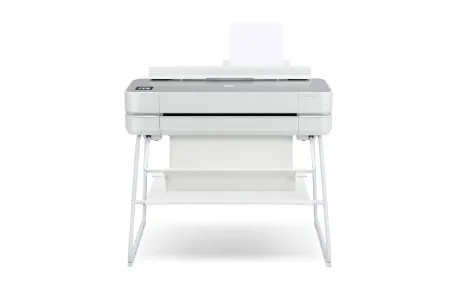

HP DesignJet Studio Series
Design meets performance in the world's easiest large-format plotters1
Fits the way you live
- Design that performs, technology that stands out.
- Easily set up your plotter using your smartphone.
- First net carbon neutral HP DesignJet plotter.2
Fits the way you work
- Avoid waiting by the printer with high-speed printing as fast as 25 seconds per A1/D plot.3
- Be more productive—save time from job prep to final print by printing your projects up to 102% faster.5
- Print your jobs and manage your plotter from virtually anywhere, anytime with the HP Smart app.
- Get high-quality results—HP Bright Office Inks plot up to 31% more line accuracy and up to 65% more gamut.6
Extreme simplicity
- Print multi-size A3/B and A1/D or A0/E projects automatically, without manually switching the media source.
- Save time with the world's easiest job submission—send multiple files in one click with HP Click software.4
- Print with confidence you'll get the results you expect with an intuitive driver and true print preview.
Key Specifications
| Print Speed | 24-in: 26 sec/page on A1, 81 A1 prints per hour 36-in: 25 sec/page on A1, 82 A1 prints per hour |
| Print Resolution | Up to 2400 x 1200 optimised dpi |
| Technology | HP Thermal Inkjet |
| Margins | Roll: 5 x 5 x 5 x 5 mm Sheet: 5 x 5 x 5 x 5 mm |
| Ink Types | Dye-based (C, M, Y); pigment-based (K) |
| Page Yield | 20 ml of ink yields 101 A1/D pages, taking into account maintenance routines |
| Ink Drop | 5.5 pl (C, M, Y); 12 pl (K) |
| Printheads | 1 (cyan, magenta, yellow, black) |
| Printhead Nozzles | 1,376 |
| Line Accuracy | ±0.1% |
| Minimum Line Width | 0.02 mm |
| Maximum Optical Density | 8 L* min/2.10 D |
| Media | |
| Handling | Sheet feed, roll feed, automatic sheet feeder, media bin, automatic horizontal cutter |
| Sheet Size | Auto sheet feeder: 210 x 279 to 330 x 482 mm 24-in manual feed: 210 x 279 to 610 x 1897 mm 36-in manual feed: 210 x 279 to 914 x 1897 mm |
| Roll Size | 24-in: 279 to 610 mm 36-in: 279 to 914 mm |
| Standard Sheets | Auto sheet feeder: A4, A3 24-in manual feed: A4, A3, A2, A1 36-in manual feed: A4, A3, A2, A1, A0 |
| Grammage | 60 to 280 g/m² (roll/manual feed); 60 to 220 g/m² (auto sheet feeder) |
| Thickness | Up to 0.3 mm |
| Applications | Line drawings; Presentations; Renderings |
| Memory | 1 GB |
| Hard Disk | None |
| Connectivity | |
| Interfaces | Gigabit Ethernet (1000Base-T), Hi-Speed USB 2.0, Wi-Fi 802.11 |
| Print Languages (Standard) | HP-GL/2, HP-RTL, CALS G4, JPEG, URF |
| Drivers | Raster driver for Windows and macOS |
| Dimensions (W x D x H) | |
| Printer | 24-in: 1013 x 555 x 932 mm 36-in: 1317 x 555 x 932 mm |
| Shipping | 24-in: 1199 x 590 x 524 mm 36-in: 1470 x 575 x 646 mm |
| Weight | |
| Printer | 24-in: 33.6 kg 36-in: 41.7 kg |
| Shipping | 24-in: 43 kg 36-in: 62 kg |
| What's in the box | HP DesignJet Studio series printer, printer stand, automatic sheet feeder, roll cover, printhead, introductory ink cartridges, spindle, quick reference guide, setup poster, power cord |
| HP Software and Solutions | HP Click, HP Smart app, HP Print Preview for Windows, HP Easy Start, HP DesignJet Utility for Windows, HP Support Assistant |
| Remote Print Enabled | Yes |
| One-Click Multi-Size Printing | Yes |
| Environmental Ranges | |
| Recycled Plastic in Printer | 10% |
| Operating Temperature | 5 to 40ºC |
| Operating Humidity | 20 to 80% RH |
| Operating Altitude | Up to 3000 m |
| Storage Temperature | -25 to 55ºC |
| Acoustics | |
| Sound Pressure | 42 dB(A) (operating), < 16 dB(A) (idle) |
| Sound Power | 5.8 B(A) (operating), < 3.4 B(A) (idle) |
| Power | |
| Consumption | < 35 W (printing), < 5.6 W (ready), < 2.1 W (sleep), < 0.2 W (standby) |
| Requirements | Input voltage (auto ranging): 220-240 V (±10%), 50/60 Hz (±3 Hz), 1200 mA max |
| Certification | |
| Safety | EU (LVD, EN 60950-1 and EN 62368-1 compliant); Russia, Belarus, Khazakstan (EAC); Ukraine (UA) |
| Electromagnetic | Compliant with Class B requirements EU (EMC/RED Directives |
| Enviromental | ENERGY STAR; WEEE; EU RoHS; EAEU RoHS; REACH; ErP |
| Warranty | Two-year limited hardware warranty. |
Footnotes
1 The HP DesignJet Studio Printer series and the HP DesignJet T600 Printer series are the only solutions providing seamless printing of both large- and small-format sheets automatically in a multi-size print basket compared to competitive alternatives with comparable size and features as of January, 2020
2 HP is reducing the carbon footprint of printing through carbon reduction initiatives such as energy efficiency, reduced packaging, and use of recycled plastics. The HP DesignJet Studio Printer is the first HP DesignJet where HP has offset the remaining carbon impact due to raw material extraction and processing, printer manufacturing and transportation, as well as electricity, paper, and cartridge use in accordance with The CarbonNeutral Protocol https://www.carbonneutral.com/how/carbonneutral-protocol.
3 The HP DesignJet Studio Printer series 24-models deliver A1/D prints in 26 seconds and 36-inch models deliver A1/D prints in 25 seconds.
4 One-click printing with HP Click software. Applicable to PDF, JPEG, TIFF, DWF, and HP-GL/2 files.
5 Three-click printing with HP Click software compared to up to11 clicks with competitive alternatives when printing 5 files of different sizes. Applicable to PDF, JPEG, TIFF, DWF, and HP-GL/2 files. Based on testing the HP DesignJet Studio 36-in Printer, from job prep to print is up to 102% faster than competitive alternatives with comparable size and features as of January, 2020.
6 Up to 31% more line accuracy based on HP internal testing, September 2019 of 1 pixel vertical line straightness comparing prints from the HP DesignJet Studio Printer series and Canon TM-305 Printer on plain paper using equivalent fast/draft print modes. Up to 65% more color gamut based on HP internal testing, September 2019, of gamut volume comparing prints from the HP DesignJet Studio Printer series and Canon TM-305 Printer on Oce 75gsm plain paper using equivalent fast/draft print modes.
