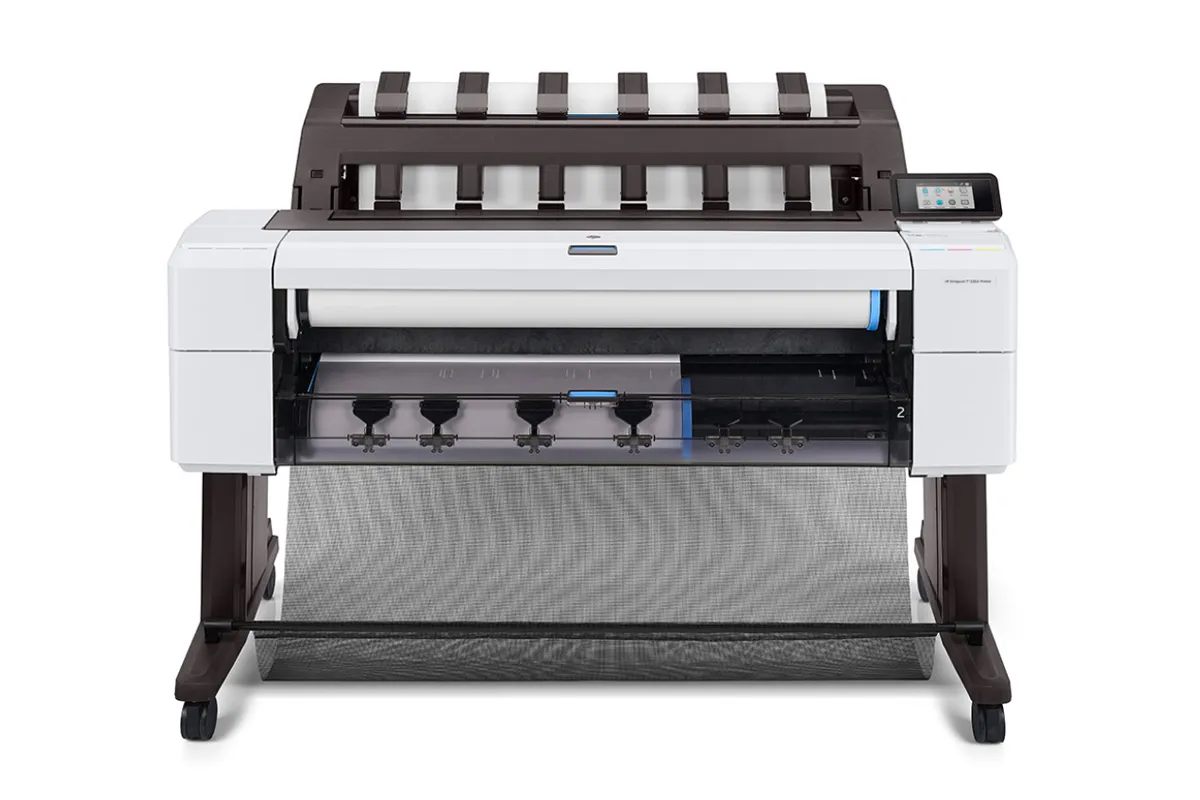

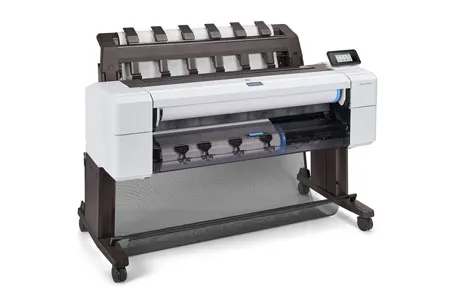

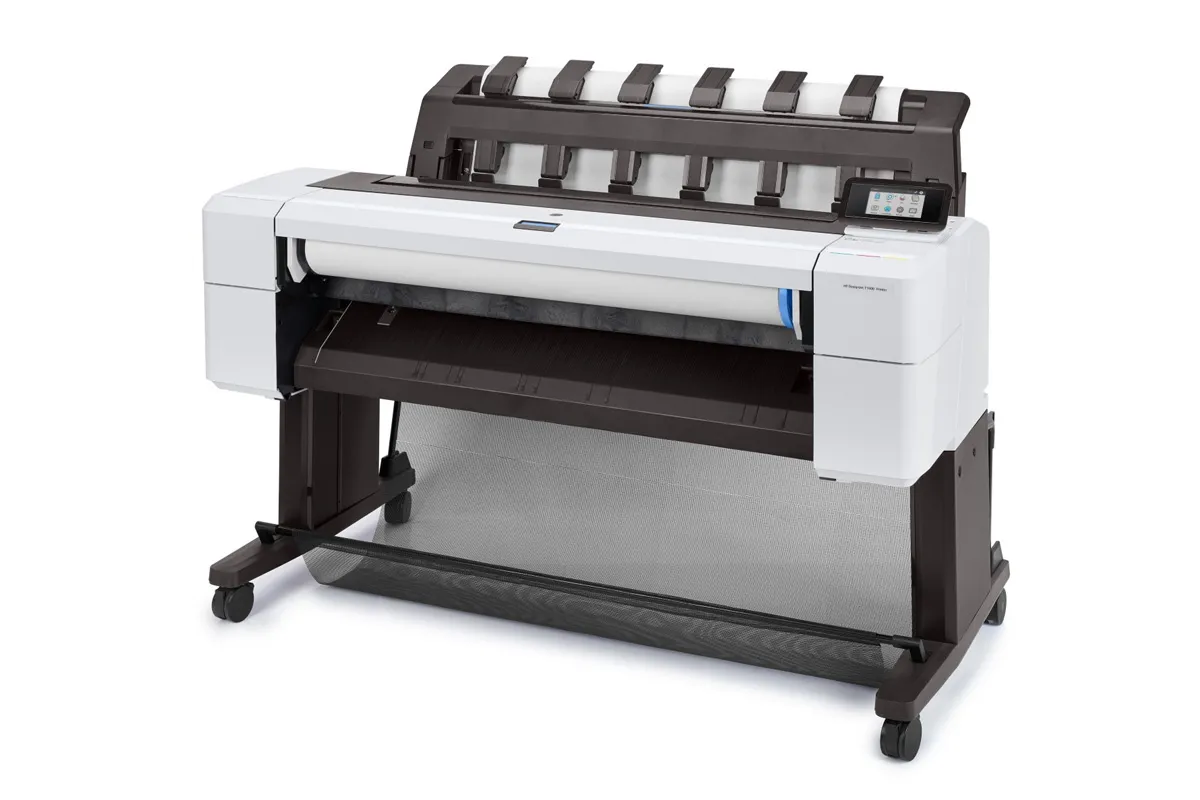

HP DesignJet T1600
Product Overview
The HP DesignJet T1600 is ideal for individual or multiuser environments, delivering from black & white CAD drawings to color presentations, while streamlining workflows with tools like automatic media-roll alignment and accurate print previews.
EXPERIENCE SIMPLICITY – At the high-end
UNLEASH PERFORMANCE — To turn design into delivery
- Showcase design versitility from precise line drafts to boldly colored 3D renders, with HP Bright Office links.
- Provide the highest accuracy and display the finest details with the unique Adobe PDF Print Engine.3
- Meet deadlines with the fastest speed up to 180 D/hr2, and dual roll option.4
- Cut out unproductive tasks with integrated automatic print stacking, up to 100 pages.
SECURE — World's most secure large-format printer5
- Rely on the best network protection with fetures like HP Secure Boot and whitelisting.5
- Control who accesses the printer and its confidential documents with secure user authentication.
- Keep your fleet secure at any time with HP JetAdvantage Security Manager.
Key Specifications
| Print Technology | Memory | Hard Drive | Resolution |
|---|---|---|---|
| HP Thermal Inkjet | 128 GB | 500 GB HDD, self-encrypted with AES-256 | 2400 × 1200 dpi |
| Print Speed | 180 A1/hr, 19.3 sec/A1 |
| Print Resolution | Up to 2400 x 1200 optimised dpi |
| Technology | HP Thermal Inkjet |
| Margins | Roll: 3 x 3 x 3 x 3 mm Sheet: 3 x 22 x 3 x 3 mm |
| Ink Types | Dye-based (C, M, Y, pK, G); Pigment-based (mK) |
| Printheads | 1 universal printhead |
| Line Accuracy | ±0.1% |
| Minimum Line Width | 0.02 mm (PDF addressable at 1200 dpi) |
| Media | |
| Handling | Sheet feed, automatic front-loading roll feed, smart roll switching, integrated output stacker, media bin, automatic horizontal cutter |
| Sheet Size | 210 x 279 to 914 x 1219 mm |
| Roll Size | 279 to 914 mm |
| Standard Sheets | A4, A3, A2, A1, A0 |
| Grammage | 60 to 328 g/m2 |
| Thickness | Up to 0.5 mm (Up to 19.7 mil) |
| Applications | Line drawings; Maps; Orthophotos; Presentations; Renderings |
| Memory | 128 GB (file processing) |
| Hard Disk | 500 GB self-encrypting |
| Connectivity | |
| Interfaces | Gigabit Ethernet (1000Base-T), supporting the following standards: TCP/IP, BootP/DHCP (IPv4 only), DHCPv6, TFTP (IPv4 only), SNMP (v1, v2c, v3), Apple Bonjour Compatible, WS Discovery, Embedded Web Server (HTTP, HTTPS), IPsec, SMTP (email), Raw IP printing (9100), LPD, IPP, WS print, NTLM v2, SMBv3, SSL/TLS, 802.1X authentication (LEAP, PEAP, EAP-TLS), DFS |
| Print Languages (Standard) | PostScript Printer: Adobe PostScript 3, Adobe PDF 1.7, HP-GL/2, HP-RTL, TIFF, JPEG, CALS G4; Non-PostScript Printer: HP-GL/2, HP-RTL, TIFF, JPEG, CALS G4 |
| Print Languages (Optional) | Non-PostScript Printer: Adobe PostScript 3, Adobe PDF 1.7 |
| Printing Paths | Direct printing from USB flash drive, print from network shared folder, email printing, HP driver for Windows, HP Print Service for Android, Apple AirPrint driver for MacOS and for iOS, HP Print for Chrome OS, HP Click, HP Smart App for iOS and Android |
| Drivers | PostScript Printer: Raster, PostScript and PDF drivers for Windows, AirPrint for macOS; Non-PostScript Printer: Raster drivers for Windows, AirPrint for macOS |
| Security Features | HP Secure Boot, Whitelisting, TPM, Role Based Access Control, LDAP and Kerberos authentication, SNMPv3, HTTPS, Secure-IPP, IPsec/Firewall, Certificates management, 802.1X, TLS 1.0/1.1/1.2, HP Web Jetadmin compatible, HP JetAdvantage Security Manager compatible, Secure Disk erase (DoD 5220.22-M), Secure File erase, self-encrypting HDD, encrypted PIN printing, Syslog security logging |
| Dimensions (WxDxH) | |
| Printer | 1390 x 760 x 1080 mm |
| Shipping | 1477 x 767 x 800 mm |
| Weight | |
| Printer | Single-roll: 82 kg, dual-roll: 85 kg |
| Shipping | Single-roll: 113 kg, dual-roll: 117 kg |
| What's in the box | HP DesignJet T1600 Printer, printer stand and media bin, spindle(s) , printheads, introductory ink cartridges, user guide, power cords |
| HP Software and Solutions | HP Click, HP mobile, ePrint and iOS/Android support plus the HP Smart app for mobile, HP Web Jetadmin, HP JetAdvantage Security Manager, HP SmartTracker (optional) |
| Environmental Ranges | |
| Operating Temperature | 5 to 35ºC |
| Operating Humidity | 20 to 80% RH |
| Storage Temperature | -25 to 55ºC |
| Acoustics | |
| Sound Pressure | 42 dB(A) (operating); 32 dB(A) (idle); < 17 dB(A) (sleep) |
| Sound Power | ≤ 5.9 B(A) (operating); ≤ 4.9 B(A) (idle); ≤ 3.5 B(A) (sleep) |
| Power | |
| Consumption | 100 W (printing); < 36 W (ready); < 1 W (< 10 W with embedded Digital Front End) (sleep); 0.3 W (off) |
| Requirements | Input voltage (auto ranging) 100-240 V (±10%), 50/60 Hz (±3 Hz), 2 A max |
| Certification | |
| Safety | EU (LVD and EN 60950-1 compliant); Russia, Belarus, Khazakstan (EAC); Ukraine (UA) |
| Electromagnetic | Compliant with Class B requirements, including: EU (EMC Directive) |
| Enviromental | ENERGY STAR, ErP, WEEE, RoHS (EU), REACH, EPEAT |
| Warranty | Two-year limited hardware warranty. Warranty and support options vary by product, country and local legal requirements. |
Footnotes
1 Compared to Canon Direct Print & Share and based on “One Click Print.” Once image is selected, one-click printing when printing the entire file without any modifications to the print settings. Applicable to PDF, JPEG, TIFF, DWF, HP-GL/2 files.
2 Based on comparable large-format inkjet printers under €12,000 as of December, 2018. IDC figures show that Canon, Epson, and HP combine for 98% share of this printing category worldwide as of Q3, 2018. Fastest print speed based on sustained printing speeds. Most compact footprint calculated using all devices in "Operation mode" with an Open Basket and the arm of the Screen (front panel) spread out to enable user interaction. Most quiet according to internal HP testing of sound pressure level during operating mode (plain paper, line drawing, Normal mode) compared to published specification of competitive printers. Percentage calculations of noise based on lineal units vs. Canon TX-3000 published spec of 51dB(A).
3 Requires purchase of the HP DesignJet T1600 PostScript® models or optional HP DesignJet PostScript/PDF Upgrade Kit. Highest accuracy and finest details compared to printers without the embedded Adobe technology excluding RIP users, and based on internal HP testing with PDF files containing special fonts, PANTONE® colours, smooth shading, overprint, and transparencies that can only be reproduced using the Adobe PDF Print Engine. The Adobe PDF Print Engine (APPE) is Adobe’s high speed, high fidelity print platform. To learn more, visit http://www.adobe.com/products/pdfprintengine.
4 Dual rolls included with HP DesignJet T1600dr printers only.
5 Advanced embedded security features are based on HP review of 2019 published embedded security features of competitive printers, as of February 2019.
